xta DP226Specifications
-------------------------
Inputs 2 electronically balanced. [++]
Impedance >10k ohms.
CMRR >65dB 50Hz - 10kHz.
Outputs 6 electronically balanced. [++]
Source Imp < 60ohms.
Min. Load 600ohm.
Max. Level +20dBm into 600 ohm load.
Frequency Resp. ±0.5dB 20Hz - 20kHz.
Dynamic Range >110dB 20Hz -20kHz. unwtd.
Distortion < 0.02% @ 1kHz, +18dBm.
Maximum Delay 650 mS. (increment 2.6 l uS Steps)
Output gain Adjustable +15dB to -40dB in 0.1 dB steps and mute.
Parametric Equalisation
Filters 8 Per input 5 per output.
Filter gain +15dB to -30dB in 0.1dB steps.
Centre frequency 20Hz - 20kHz, 1/36 octave steps. (368 positions) Filter Q/BW 0.4 to 128/2.5 to 0.008 High & Lowpass Filters
Filters 1 of each per output.
Frequency (HPF) 10Hz - 16kHz, 1/36 octave steps.
Frequency (LPF) 60Hz - 22kHz, 1/36 octave steps.
Response Bessel / Butterworth 12dB, 18dB and 24dB per octave and Linkwitz-Riley 24dB per octave.
Limiters
Threshold +22dBu to -10dBu
Attack time 0.3 to 90 milliseconds.
Release time 2, 4, 8, 16 or 32 times the attack time.Display 2 x 20 character backlit LCD.
Connectors
Inputs 3 pin female XLR.
Outputs 3 pin male XLR.
RS485 In/Out XLRS
RS232 9 Pin (Female) DEE Connector
MIDI In / 5 pin DIN.
Power 3 pin IEC. Power 60VAC - 240VAC.
Consumption < 30 watts.
Weight 3.5kg. Net (4.8kg. Shipping)
Size 1.75"(1U) x 19" x 11.8" (44 x 482 x 300mm)
excluding connectors.
Options [++] = Transformers available.
AES/EBU Digital I/O; GPI Interface.
---------------------------------------------------------

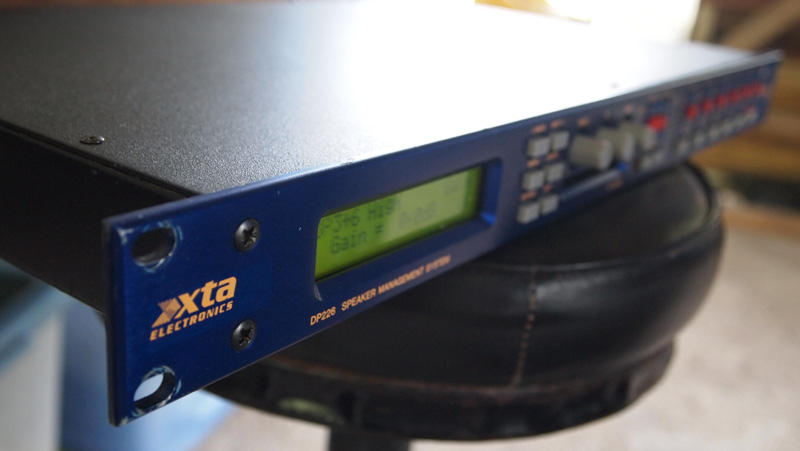

จอ

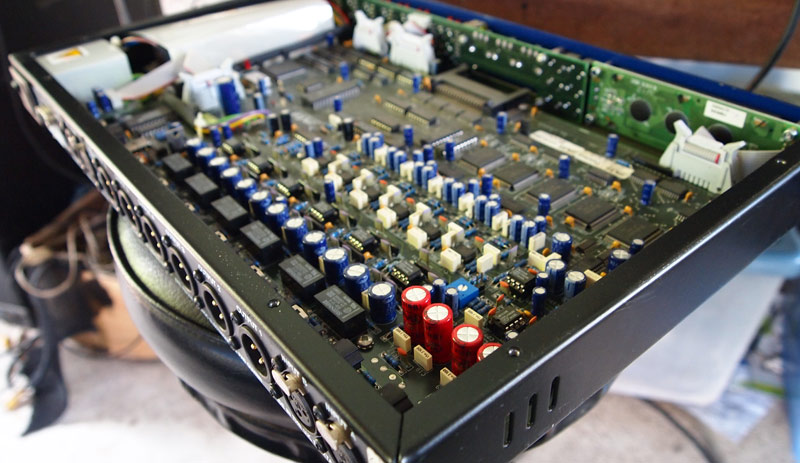

ท้าย

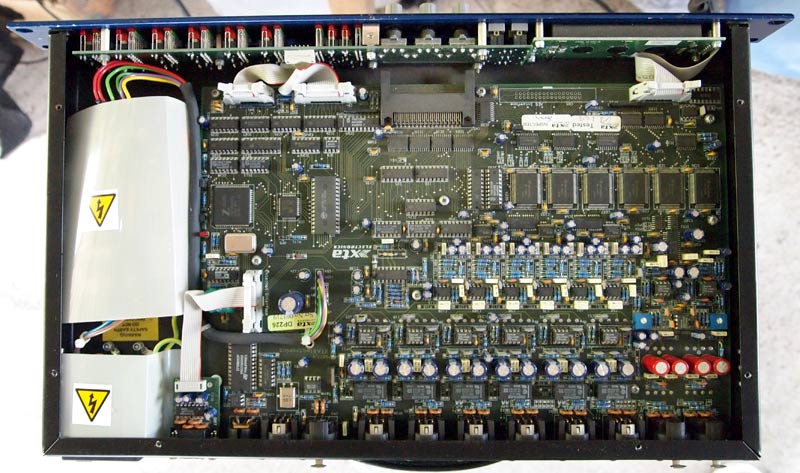

มุมบน ต่างกันแค่ Out 4 กะ 6 ทุกอย่างเหมือนกัน 100%
DP-224
DP-226
ภาคไฟ
เพื่อการศึกษาเท่านั้น
